Product Details
- Size: 2
- Place of Origin: China
- Brand Name: xunda
- Model Number: T100
- Weight: 1.000 kg
- :
- :

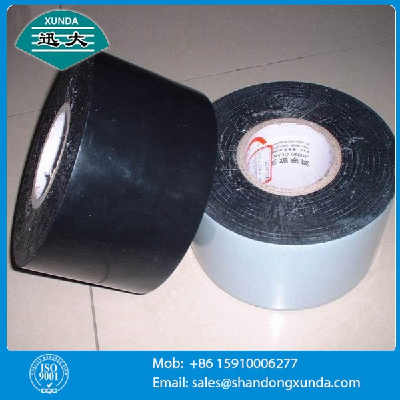

Tape Coating for Pipe Anticorrosion Inner layer tape
System description:
Inner wrap tapeT100 is engineered to assure a high bond to the primed pipe surface with excellent conformability,aggressive adhesive for corrosion protection and repair of main line coatings.T100 is a multilayer system used for
the protection of steel pipelines. They are designed for machine or brush application and formulated with stress-corrosion cracking inhibitors. The T1100 can also be used for ductile iron pipes, in this case the use of P27 primer
is recommended.
Inner wrap tapeT100 series is Cold applied tape coating system for corrosion protection of Oil, Gas, Petrochemical,
and Waste Water pipelines, pipe can be buried, underground ,overhead ,onshore and offshore .
Structure：
The specification of the tape consists of two layers, adhesive layer and film backing.
Adhesive: Butyl rubber
Film backing: Special blend of stabilized polyethylene
Features & Benefits
● Provides a permanent bond to the primed steel pipes surface and provides protection against chemical ● electrolytic corrosion for underground pipelines.
● long term corrosion protection
● Worldwide reference lists. Established in-ground history
● High chemical resistance under service temperature.
● Outstanding electric property and permanent adhesion.
● Cold applied, No release liner. Makes installation fast and easy.
● Complies with EN-DIN 30672 and AWWAC-214 international standards and also ASTM standards.
Physical Properties
INNER WRAP TAPE: XUNDA-T100 Series| Type | T 138 | T150 | T165 | T176 | T180 | T130 | T1100 | |
| Thickness | 15mil 0.38mm | 20mil 0.508mm | 25mil 0.635mm | 30mil 0.762mm | 35mil 0.8mm | 12mil 0.305mm | 40mil 1.0mm | |
| Backing | 10mil 0.25mm | 9mil 0.241mm | 10mil 0.254mm | 10mil 0.254mm | 18mil 0.41m | 8mil 0.203m | 25mil 0.635mm | |
| Adhesive | 5mil 0.13mm | 11mil 0.279mm | 15mil 0.381mm | 20mil 0.508mm | 17mil 0.39mm | 4mil 0.102mm | 15mil 0.38mm | |
| Elongation | ³400% | |||||||
| Color | Black | |||||||
| Tensile Strength | 55 N/cm | |||||||
| Peel Adhesion to Primed Pipe | 30 N/cm | |||||||
| Impact strength | 8-15J | |||||||
| Dielectric Strength | 30 KV | |||||||
| Dielectric Breakdown | 26 KV/mm | |||||||
| Cathodic Disbandment | 0.24 in radius 6.4 mm | |||||||
| Water Vapor Transmission Rate | < 0.1% | |||||||
| Volume Resistivity | 2.5 x 1015 ohm.cm | |||||||
| Impact resistance | 5.5Nm | |||||||
| Penetration Resistance | <15% | |||||||
| Length | 100ft,200ft,400ft,600ft,800ft | |||||||
| Width | 2’’,4’’,6’’,8’’,9’’.. | |||||||
| Performance | AWWA C-209,ASTM D 1000,IPSMT310 | |||||||
Product Selection Guide
| Max operating temperature | 66°C (150°F) |
| Recommended primer | P19 |
| Additional mechanical layer | T100 and T200 |
| Compatible line coatings | PE, FBE, Tape & Coal Tar |
| Recommended pipe preparation | SSPC-SP2, SP3 & SP6 ST 2 1/2 - ST 3 |
Ordering Information
Tape Coatings are available in roll form.Ordering Example: T100-20 BLK 6X200FT 3’’
| 20 | Total tape thickness in mils | 20 mils (0.508 mm),25 mils (0.635 mm) |
| BLK | Tape backing color | Black (BLK), White (WHI), Blue (BLU),GREEN(GRN) |
| 6 | Tape width in inches | 1" (25 mm), 2" (50 mm), 4" (101 mm), 6"(152 mm), |
| 200FT | Tape roll length in feet | 100 ft (30 m) 200FT(60m),400FT(120m),600FT(180m) |
| 3 | Tape inner core diameter | 1.5" (38 mm), 3" (75 mm) |
