Product Details
- Size: 2
- Place of Origin: China
- Brand Name: xunda
- Model Number: T100
- Weight: 1.000 kg

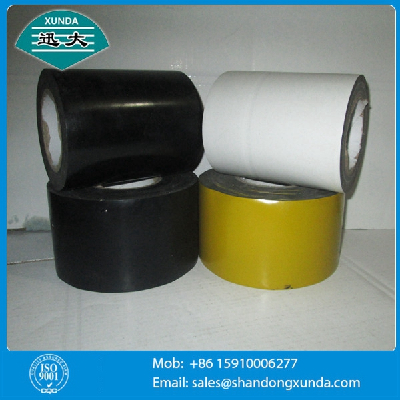

Backing layer : Polyethylene

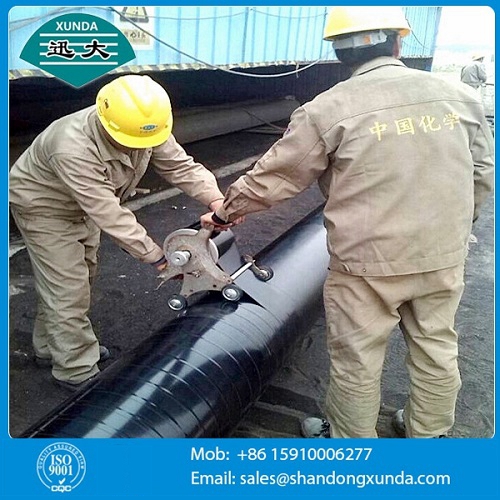

Adhesive layer: Butyl rubberCoverage: Xunda Cold applied adhesive tape coating systems ( Similar with Polyken tapes) for anticorrosion of field joints, fittings, and specifically piping, gas/oil/water pipelines, The Adhesive is a key in ground/overhead performance characteristic coupled with the low and high density polyethylene backing. This kind of tape can be applied by hand or with a wrapping machine.
Measurement US Value Metric Value Test Method
Backing thickness 12 mil 0.3mm PSTC-33
Adhesive thickness 13 mil 0.34mm PSTC-33
Adhesion to Steel 28oz/in 4kg/cm ASTM-D-3330
Elongation 390% 390% ASTM-D-1000
Dielectric breakdown 40 Kv/mm 40 Kv/mm ASTM-D-1000
Insulation resistance 108Ohm.m2 108Ohm.m2 ASTM-D-1000
Water absorption <0.1% <0.1% ASTM-D-570
Maximum Temperature 190oF 88oC
Tensile 10lb/in .18kg/mm ASTM-D-3759
Color White /Black White /Black
